Self Steering Axle Ⅲ

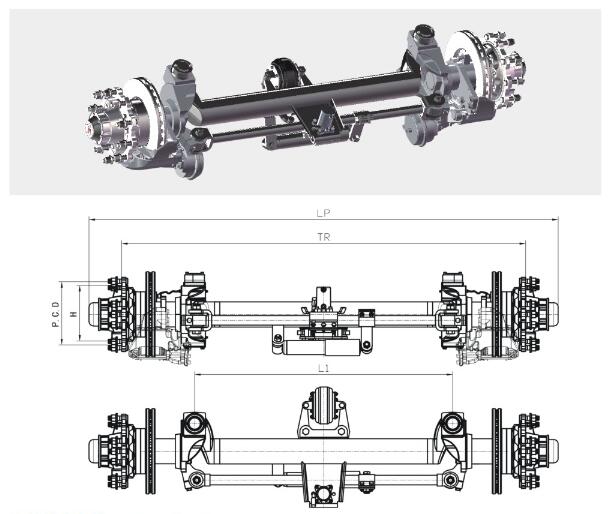

Axle specifications
Axle type |
Max. capacity |
Total length (LP) |
Track (TR) |
Centre distance of steering pin(L1 ) | Axle beam | Brake | Wheel fixing | Max. steering angle | |||
Studs | P.C.D. | H | |||||||||
kg | mm | mm | mm | mm | mm | mm | mm | mm | |||
AL4345R127.1850T02S | 11000 | 2162 | 1850 | 1091 | Ф127 | 22.5"DISC | 10-M22x1.5 ISO | Ф285.75 | Ф220 | 18° | |
AL4345R127.2040T01S | 10000 | 2369 | 2040 | 1303 | Ф127 | 22.5"DISC | 10-M22x1.5 ISO | Ф335 | Ф281 | 18° | |
AL3845R127.1850T01S | 9000 | 2145 | 1850 | 1010 | Ф127 | 19.5"DISC | 8-M22x1.5 ISO | Ф275 | Ф220 | 20° | |
AL3845R127.1850T02 | 9000 | 2145 | 1850 | 1010 | Ф127 | 19.5"DISC | 10-M22x1.5 ISO | Ф285.75 | Ф220 | 18° | |
Notes: 1. Specified track length is available.
2. ABS and automatic slack adjuster are available. |
