Self Steering Axle Ⅱ

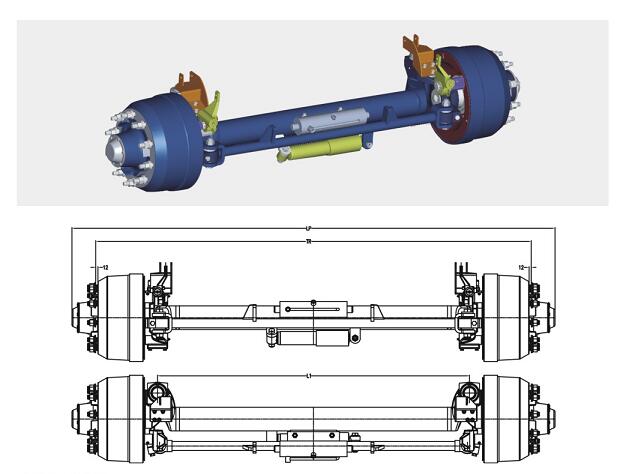

Axle specifications
Axle type |
Max. capacity |
Total length (LP) |
Track (TR) |
Centre distance of steering pin(L1 ) | Axle beam | Brake | Wheel fixing | Max. steering angle | |||
Studs | P.C.D. | H | |||||||||
kg | mm | mm | mm | mm | mm | mm | mm | mm | |||
AL3119R127.1970T01 | 11000 | 2143 | 1970 | 1218 | Ф127 | Ф310x190 | 10-M22x1.5 ISO | Ф225 | Ф176 | 18° | |
AL3119R127.2000T01 | 9000 | 2290 | 2000 | 1478 | Ф127 | Ф310x190 | 10-M22x1.5 ISO | Ф225 | Ф176 | 18° | |
AL4218S120.2000T01 | 9000 | 2273 | 2000 | 1306 | □120 | Ф420x180 | 10-M22x1.5 ISO | Ф335 | Ф281 | 18° | |
AL4218R127.2045T01 | 11000 | 2318 | 2045 | 1378 | Ф127 | Ф420x180 | 10-M22x1.5 ISO | Ф335 | Ф281 | 18° | |
AL4218R127.3000T01 | 11000 | 3257 | 3000 | 2333 | Ф127 | Ф420x180 | 10-M22x1.5 ISO | Ф335 | Ф281 | 18° | |
AL4220S150.2400T01 | 11000 | 2744 | 2400 | 1680 | □150 | Ф420x200 | 10-M22x1.5 ISO | Ф335 | Ф281 | 26° | |
Notes: 1. Specified track length is available.
2. ABS and automatic slack adjuster are available. |
