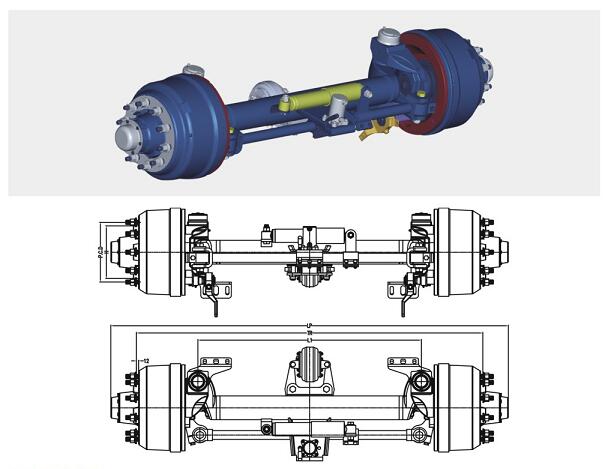

Self Steering Axle I
Axle specifications
Axle type |
Max. capacity |
Total length (LP) |
Track (TR) |
Centre distance of steering pin(L1 ) | Axle beam | Brake | Wheel fixing | Max. steering angle | |||
Studs | P.C.D. | H | |||||||||
kg | mm | mm | mm | mm | mm | mm | mm | mm | |||
AL3119R127.1900T01 | 9000 | 2183 | 1900 | 1123 | Ф127 | Ф310x190 | 10-M22x1.5 ISO | Ф225 | Ф176 | 18° | |
AL3119R127.2400T01 | 9000 | 2683 | 2400 | 1623 | Ф127 | Ф310x190 | 10-M22x1.5 ISO | Ф225 | Ф176 | 18° | |
AL3119R127.1900T03 | 11000 | 2183 | 1900 | 1123 | Ф127 | Ф310x190 | 10-M22x1.5 ISO | Ф225 | Ф176 | 18° | |
AL4218R127.1850T06 | 11000 | 2123 | 1850 | 1193 | Ф127 | Ф420x180 | 10-M22x1.5 ISO | Ф335 | Ф281 | 18° | |
AL4218R127.2320T01 | 11000 | 2593 | 2320 | 1663 | Ф127 | Ф420x180 | 10-M22x1.5 ISO | Ф335 | Ф281 | 18° | |
AL4220R127.1930T04 | 11500 | 2270 | 1930 | 1210 | Ф127 | Ф420x203 | 10-M22x1.5 ISO | Ф335 | Ф281 | 18° | |
Notes: 1. Specified track length is available.
2. ABS and automatic slack adjuster are available. |
