Bogie Suspension Ⅲ

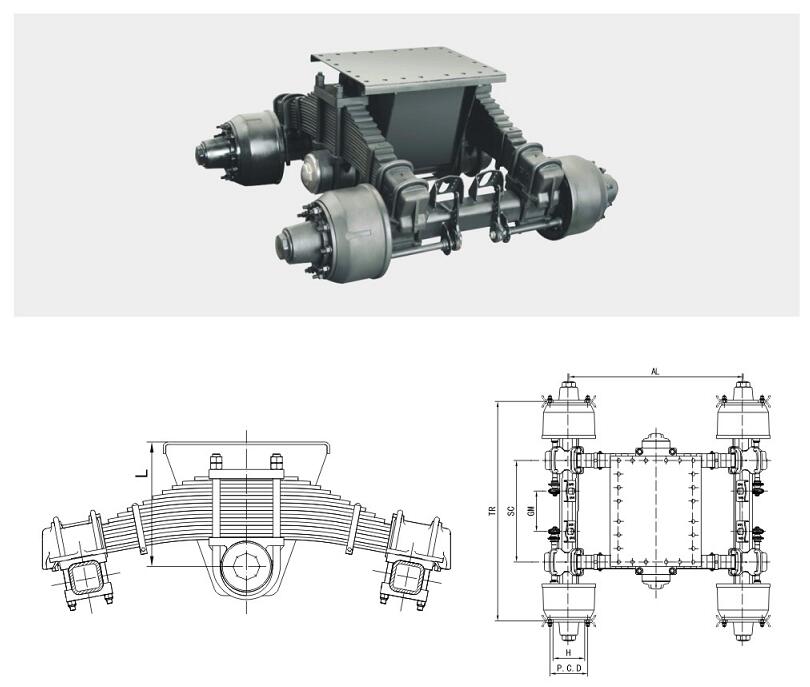

Bogie suspension specifications
Axle type |
Max. capacity |
Total length (LP) |
Track (TR) |
Centre |
Axle beam | Brake | Wheel fixing |
Recom- |
Centre distance of seat spring (SC ) |
Wheel base (AL) |
Height of pede- stal (L) |
||
Studs | P.C.D. | H | |||||||||||
kg | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
AL241840P01 | 24000 | 2145 | 1840 | 422 | □150 |
Ф420 |
10-M22x1.5 ISO | Ф335 | Ф281 | 22.5" | 980 | 1400 | 600 |
AL321850P01 | 32000 | 2270 | 1850 | 255 | □150 |
Ф420 x200 |
10-M22x1.5 ISO | Ф335 | Ф281 | 22.5" | 900 | 1550 | 600 |
AL321850SP01 | 32000 | 2260 | 1850 | 240 | □150 |
Ф420 x220 |
10-M22x1.5 ISO | Ф335 | Ф281 | 22.5" | 900 | 1550 | 600 |
