16T O/S Tandem&Tridem

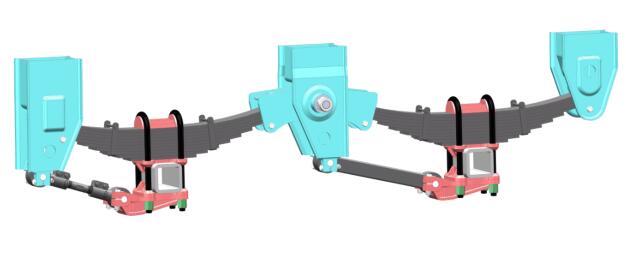

Tandem Suspension with Nine Leaf Springs
Model | Height of Towing Plate | H | H1 | H2 | Axle Load |
mm | mm | mm | mm | kg | |
AL16MS01.02 | 1180 | 183 | 473 | 465 | 16,000 x 2 |
AL16MS02.02 | 1220 | 223 | 513 | 405 | 16,000 x 2 |
AL16MS03.02 | 1250 | 253 | 543 | 535 | 16,000 x 2 |
AL16MS04.02 | 1180 | 164 | 446 | 446 | 16,000 x 2 |
AL16MS05.02 | 1220 | 204 | 464 | 464 | 16,000 x 2 |
AL16MS06.02 | 1250 | 234 | 516 | 516 | 16,000 x 2 |

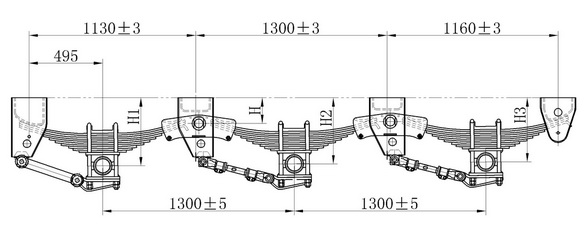

Tridem Suspension with Nine Leaf Springs
Model | Height of Towing Plate | H | H1 | H2 | H3 | Axle Load |
mm | mm | mm | mm | mm | kg | |
AL16MS07.03 | 1180 | 183 | 489 | 480 | 467 | 16,000 x 3 |
AL16MS08.03 | 1220 | 223 | 529 | 520 | 507 | 16,000 x 3 |
AL16MS09.03 | 1250 | 253 | 559 | 550 | 537 | 16,000 x 3 |
AL16MS10.03 | 1180 | 164 | 470 | 461 | 448 | 16,000 x 3 |
AL16MS11.03 | 1220 | 204 | 510 | 501 | 488 | 16,000 x 3 |
AL16MS12.03 | 1250 | 234 | 540 | 531 | 518 | 16,000 x 3 |
Note:1.Available option to round axle or square axle. |
