13T O/S Mono&Tandem

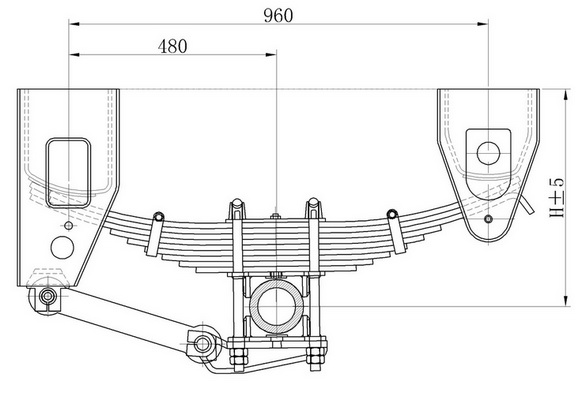

Mono Suspension with Seven Leaf Springs
Model | Height of Towing Plate | H | Axle Load |
mm | mm | kg | |
AL13MS05.01 | 1180 | 440 | 13,000 x 1 |
AL13MS06.01 | 1220 | 480 | 13,000 x 1 |
AL13MS07.01 | 1250 | 510 | 13,000 x 1 |

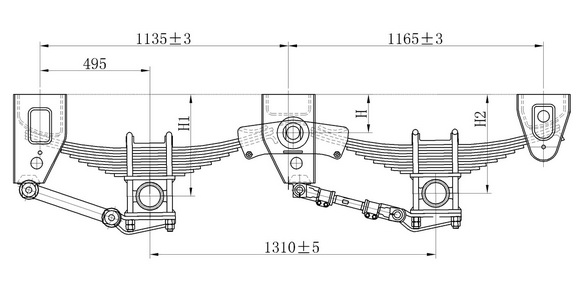

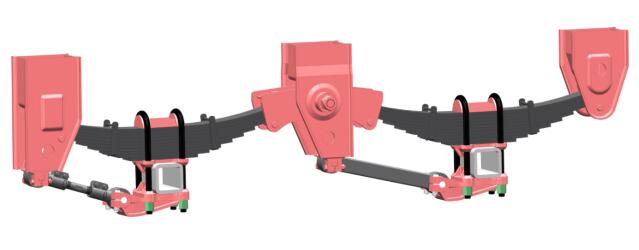

Tandem Suspension with Seven Leaf Springs
Model | Height of Towing Plate | H | H1 | H2 | Axle Load |
mm | mm | mm | mm | kg | |
AL13MS05.02 | 1180 | 183 | 440 | 433 | 13,000 x 2 |
AL13MS06.02 | 1220 | 223 | 480 | 473 | 13,000 x 2 |
AL13MS07.02 | 1250 | 253 | 510 | 503 | 13,000 x 2 |
AL13MS08.02 | 1180 | 164 | 422 | 415 | 13,000 x 2 |
AL13MS09.02 | 1220 | 204 | 462 | 455 | 13,000 x 2 |
AL13MS10.02 | 1250 | 234 | 492 | 485 | 13,000 x 2 |
AL13MS11.02 | 1180 | 333 | 590 | 583 | 13,000 x 2 |
Note:1.Available option to round axle or square axle 2.Parabolic spring is available. |
